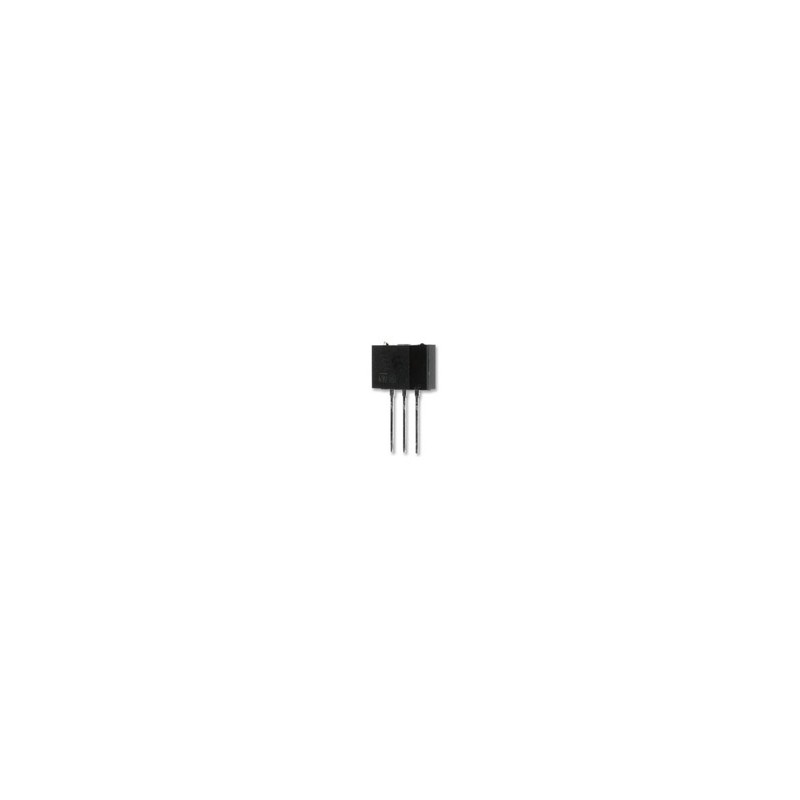

TRIAC

600 V
4 Amp
* TRIAC, 4A, 600V, TO-202
* Peak Repetitive Off-State Voltage, Vdrm:600V
* On State RMS Current IT(rms):4A
* Peak Non Rep Surge Current Itsm 50Hz:20A
* Holding Current Max Ih:5mA
* Gate Trigger Voltage Max Vgt:1,5V
* Peak Gate Power:0,2 W
* Operating Temperature Range:-40 °C a +125 °C
* Thyristor Case:TO-202
* N.º of Pins:3
* SVHC:No SVHC (15-Dec-2010)
* Corriente, Itsm:20A
* Package / Case:TO-202
* Current Itsm @ 60Hz:21A
* Current t2+g-:5mA
* Current t2-g+:5mA
* Current t2-g-:5mA
* Marcador:Z0405MF
* Gate Trigger Current Igt (Q1) t2+g+:5mA
* Gate Trigger Current Max, igt:5mA
* Repetitive Reverse Voltage Vrrm Max:600V
* Tipo de terminación:Agujero pasante
* Thyristor Type:Triac
