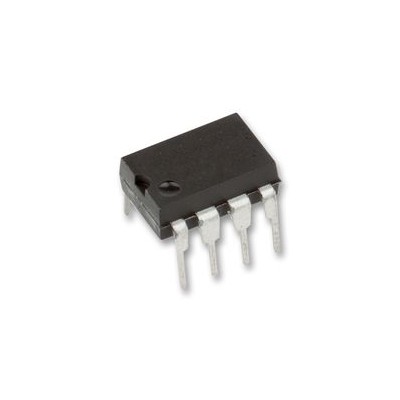

IC, OFF LINE SWITCHER, DIP8, 266
Supply Voltage: 265VAC
Digital IC Case Style: DIP
No. of Pins: 8
No. of Regulated Outputs: 1
Operating Temperature Range: -40°C to +150°C
SVHC: No SVHC (18-Jun-2012)
Base Number: 266
Current Temperature: 25°C
Drain Current: 35mA
Frequency: 132kHz
IC Generic Number: 266
Input Voltage Max: 265VAC
Logic Function Number: 266
No. of Outputs: 1
On Resistance Rds(on): 14ohm
Operating Temperature Max: 150°C
Operating Temperature Min: -40°C
Output Current: 560mA
Output Current Max: 100µA
Output Voltage: 700V
Output Voltage Max: 700V
Package / Case: DIP
Peak Drain Current: 0.56A
Power Output Open Framed @ 230VAC: 15W
Power Output Open Framed @ 85-265VAC: 9.5W
Power Supply IC Type: Off-line Switcher
Power Supply Type: Off-Line Switcher
Resistance Temperature: 25°C
Supply Voltage Min: 50V
Termination Type: Through Hole
Voltage Drain Peak Max: 700V
Voltage Drain Peak Min: -0.3V
Voltage Regulator Case Style: DIP
