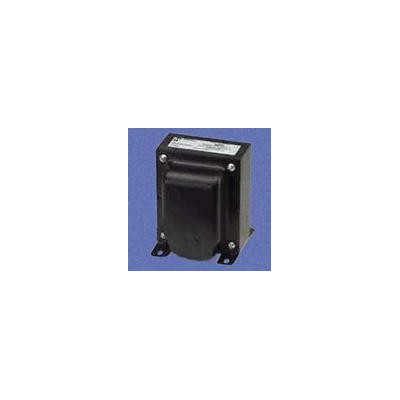

HAMMOND TRANSFORMADOR SALIDA VALVULAS

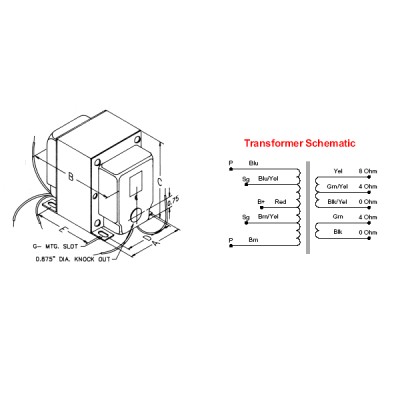

- Designed for push-pull tube output circuits.
- Enclosed (shielded), 4 slot, above chassis Type "X"
mounting, both end bells include knockouts for optional
above chassis wiring.
- Frequency response 30 Hz. to 30 Khz. at full rated
power (+/- 1 db max. ref. 1 Khz) minimum.
- Insulated flexible leads 8" min.
- All units include 40% screen taps for Ultra-Linear
operation (if desired).
- Typical applications - Push-Pull: triode, Ultra-Linear
pentode, pentode and tetrode connected audio output.
- For the "ultimate" in Push-Pull output see our line of
epoxy potted output transformers.
