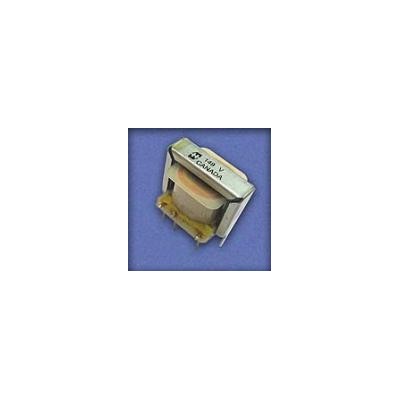

HAMMOND TRANSFORMADOR

* Pin type (0.25" length & 0.025" square), P.C. board mount.

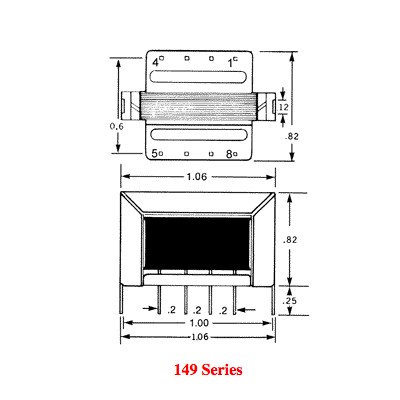

* Economical, open type, horizontal bracket construction. 149 Series includes clinching lugs for extra mounting strength.
* Frequency response 200 Hz. - 15 Khz. (+/- 1 db, ref. @ 1 Khz.).
* Total distortion approximately 2% for drivers and 1% for outputs at 200 Hz., decreasing at higher frequencies.
* Insertion loss less than 1/2 db.
* Bifilar wound for balanced capacitive and resistance characteristics, on pin bobbins for standard 0.2" grid pin spacing.
* Insulation test 250V rms.
* For rugged epoxy cast type units refer to our 102, 104, 106, or 107, 108 & 109 series.
* Net weight: 0.6 oz. (148 Series) & 1.0 oz. (149 Series).
