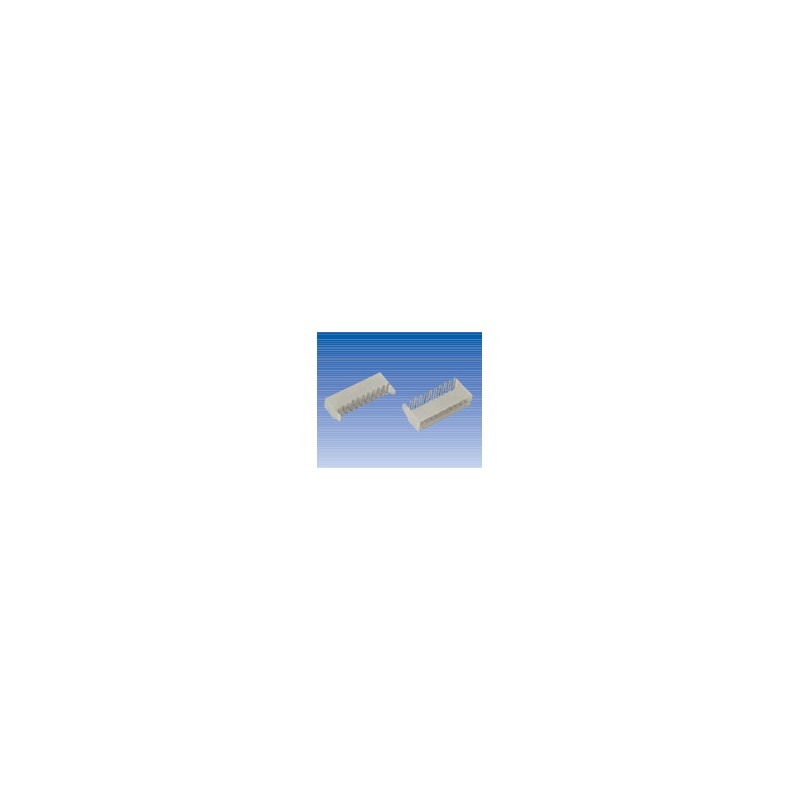

JST XH CONECTOR C.I. MACHO ACODADO - DISCONNECTABLE CRIMP STYLE CONNECTORS

6 vías - Current rating: 3A AC, DC (AWG#22)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
(including temperature rise in applying
electrical current)
- Contact resistance: Initial value/10m W max.
After environmental testing/20m W max.
- Insulation resistance: 1,000M W min.
- Withstanding voltage: 1,000V AC/minute
- Applicable wire: AWG #30 to #22
- Applicable PC board thickness: 1.6mm(.063")
- Recognized E60389
- Certified LR20812
- R75085
