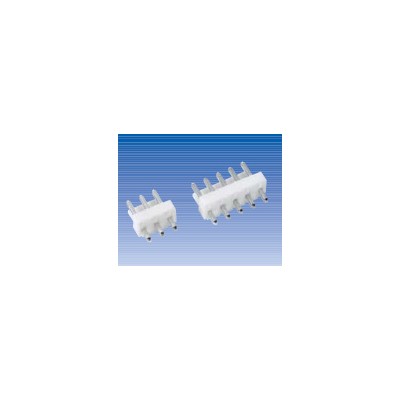

JST VH CONECTOR C.I. RECTO - DISCONECTABLE CRIMP STYLE CONNECTORS

2 vías - Current rating: 10A AC, DC (AWG#16)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
(including temperature rise in applying
electrical current)
- Contact resistance: Initial value/10m W max.
After environmental testing/20m W max.
- Insulation resistance: 1,000M W min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #22 to #16
- Applicable PC board thickness: 1.6mm(.063")
Note:
Do not branch in parallel current which exceeds the rated current. If branched in
parallel, current imbalance or other problems may develop. If it is absolutely
necessary to branch such a large current in parallel, be sure to use contacts
made of phosphor bronze. Design the circuits without causing imbalance and
provide an extra margin for each circuit. - Recognized E60389
- Certified LR20812
- R75122
