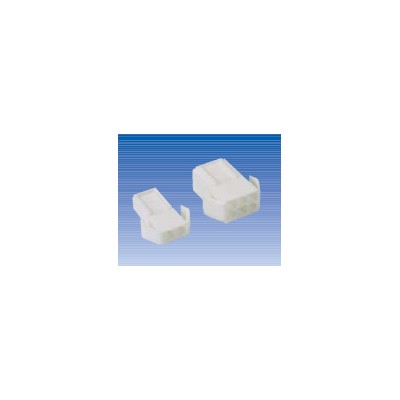

JST EL PORTAMACHOS

3 vías - Current rating: 10A AC, DC max.
- Voltage rating: 300V AC, DC max.
- Temperature range: -25°C to +90°C
(including temperature rise in applying
electrical current)
- Contact resistance: Initial value/7m W max.
After environmental testing/10m W max.
- Insulation resistance: 1,000M W min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #26 to #16
0.13 to 1.25mm2
- Applicable panel thickness: 0.8 to 2.0mm(.031" to .079")
* Contact JST for details.
Note: The current rating varies depending on the number of
circuits and the wire size used in each connector. The
table below lists the current rating as a function of the
number of circuits and the wire size.
