AMP CONECTOR

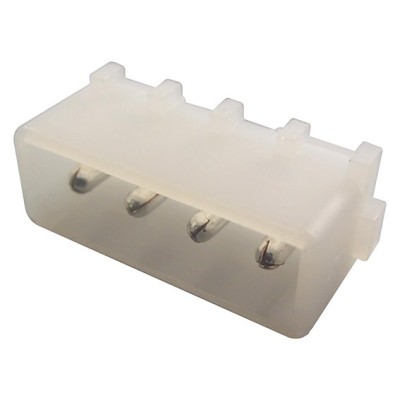

ROHS AMP 350211-1 MATE-N-LOK 4 VIAS MACHO C.I. DISCO DURO
1,3050 €
Precio con IVA:
1,5791 €
Entrega entre 24h y 72h
1,5791 €
Términos y Condiciones de venta
4 VIAS HEADER, 4WAY
Ways, No. of:4
Pitch:5.08mm
Approval Bodies:UL, CSA
Colour:Clear
Current rating:15A
Diameter, PCB hole:1.8mm
Dielectric strength, VAC:1500V
Flammability rating:UL94V-2
Material:Nylon
Mating cycles, No. of:50
Poles, No. of:4
Resistance, contact:4mR
Resistance, insulation:500MR
Temp, op. max:105°C
Temp, op. min:-55°C
Voltage rating, AC:250V
Ways, No. of:4
Pitch:5.08mm
Approval Bodies:UL, CSA
Colour:Clear
Current rating:15A
Diameter, PCB hole:1.8mm
Dielectric strength, VAC:1500V
Flammability rating:UL94V-2
Material:Nylon
Mating cycles, No. of:50
Poles, No. of:4
Resistance, contact:4mR
Resistance, insulation:500MR
Temp, op. max:105°C
Temp, op. min:-55°C
Voltage rating, AC:250V
-
