- HIGH SPEED tPD = 11 ns (TYP.) AT Vcc=5V
- LOW POWER DISSIPATION Icc=1mA(MAX.)AT TA=25°C
- OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS
- HIGH NOISE IMMUNITY VH (TYP.) = 0.9 V AT Vcc=5V
- SYMMETRICAL OUTPUT IMPEDANCE zIOHz =IOL = 4 mA (MIN.)
- BALANCED PROPAGATION DELAYS tPLH =tPHL
- WIDE OPERATING VOLTAGE RANGE Vcc(OPR) = 2 V TO 6 V
- PIN AND FUNCTION COMPATIBLE WITH 54/74LS132
Description

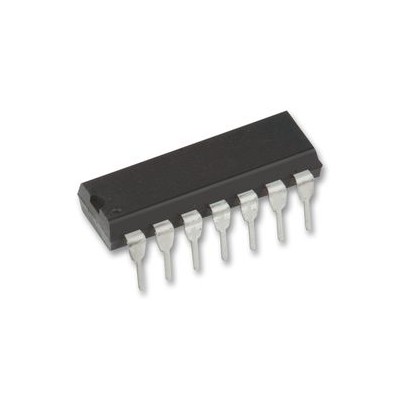

The M54/74HC132 is a high speed CMOS QUAD2- INPUT SCHMITT NAND GATE fabricated in silicon gate C2 MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption. Pin configuration and function are identical to those of the M54/74HC00. The hysterisis characteristics (around 20 % VCC)of all inputs allow slowly changing input signals to be transformed into sharply defined jitter free output signals. All inputs are equipped with protection circuits against static discharge and transient excess voltage.
