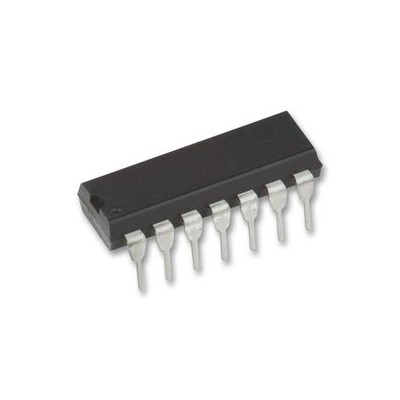

CIRCUITO INTEGRADO DIGITAL

- HIGH SPEED: tPD = 6 ns (TYP.) AT Vcc=5V
- LOWPOWER DISSIPATION: Icc =1mA (MAX.) AT TA =25°C
- HIGH NOISE IMMUNITY: VNIH =VNIL =28%Vcc(MIN.)
- OUTPUT DRIVE CAPABILITY: 10 LSTTL LOADS
- SYMMETRICAL OUTPUT IMPEDANCE: zIOHz =IOL = 4 mA (MIN.)
- BALANCEDPROPAGATION DELAYS: tPLH =tPHL
- WIDE OPERATING VOLTAGE RANGE: Vcc(OPR) = 2 V TO 6 V
- PIN AND FUNCTION COMPATIBLE WITH: 54/74LS10

Description
The M54/74HC10 is a high speed CMOS TRIPLE 3-INPUT NAND GATE fabricated with silicon gate C2 MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption. The internal circuit is composed of 3 stages including buffer output, which enables high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge and transient excess voltage.
